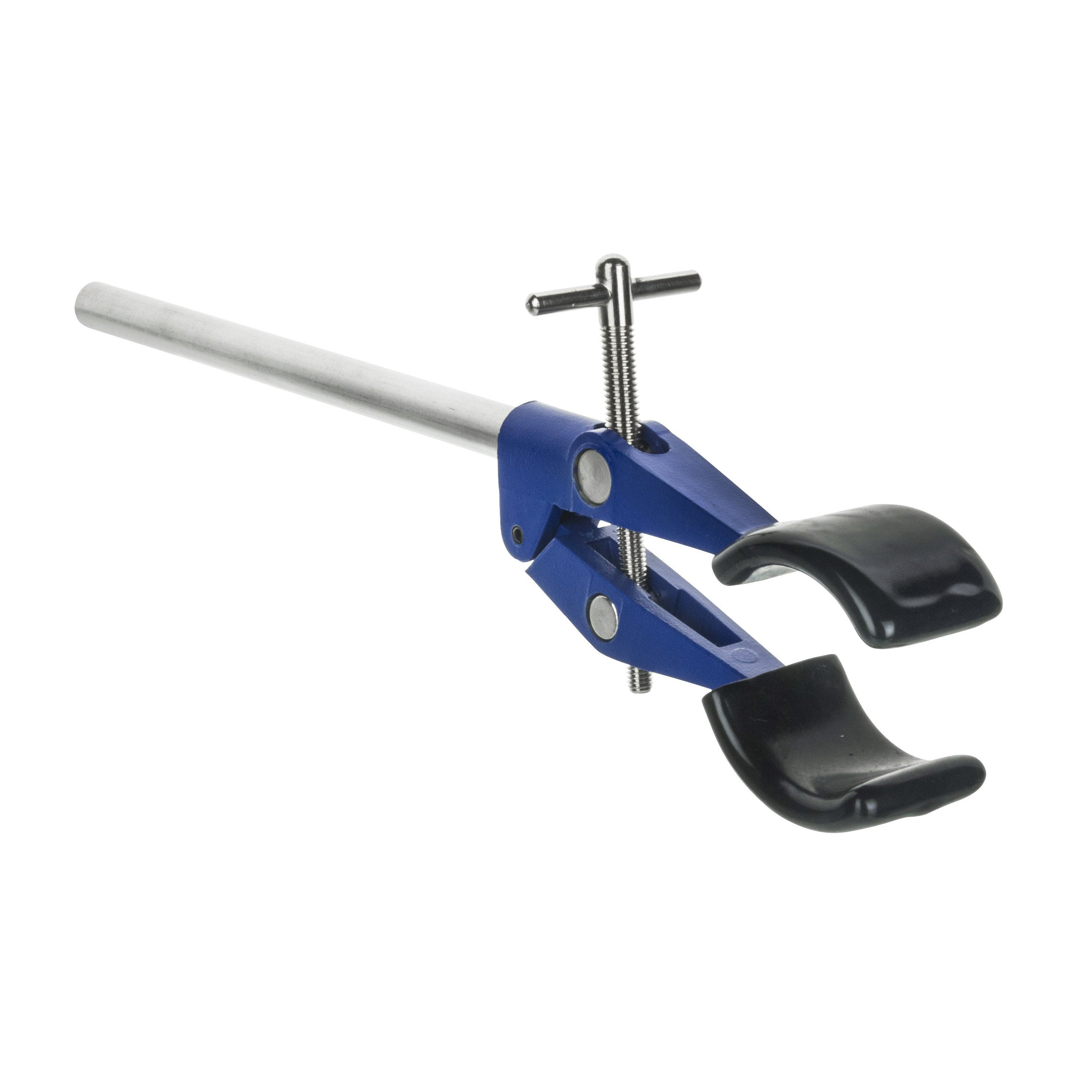

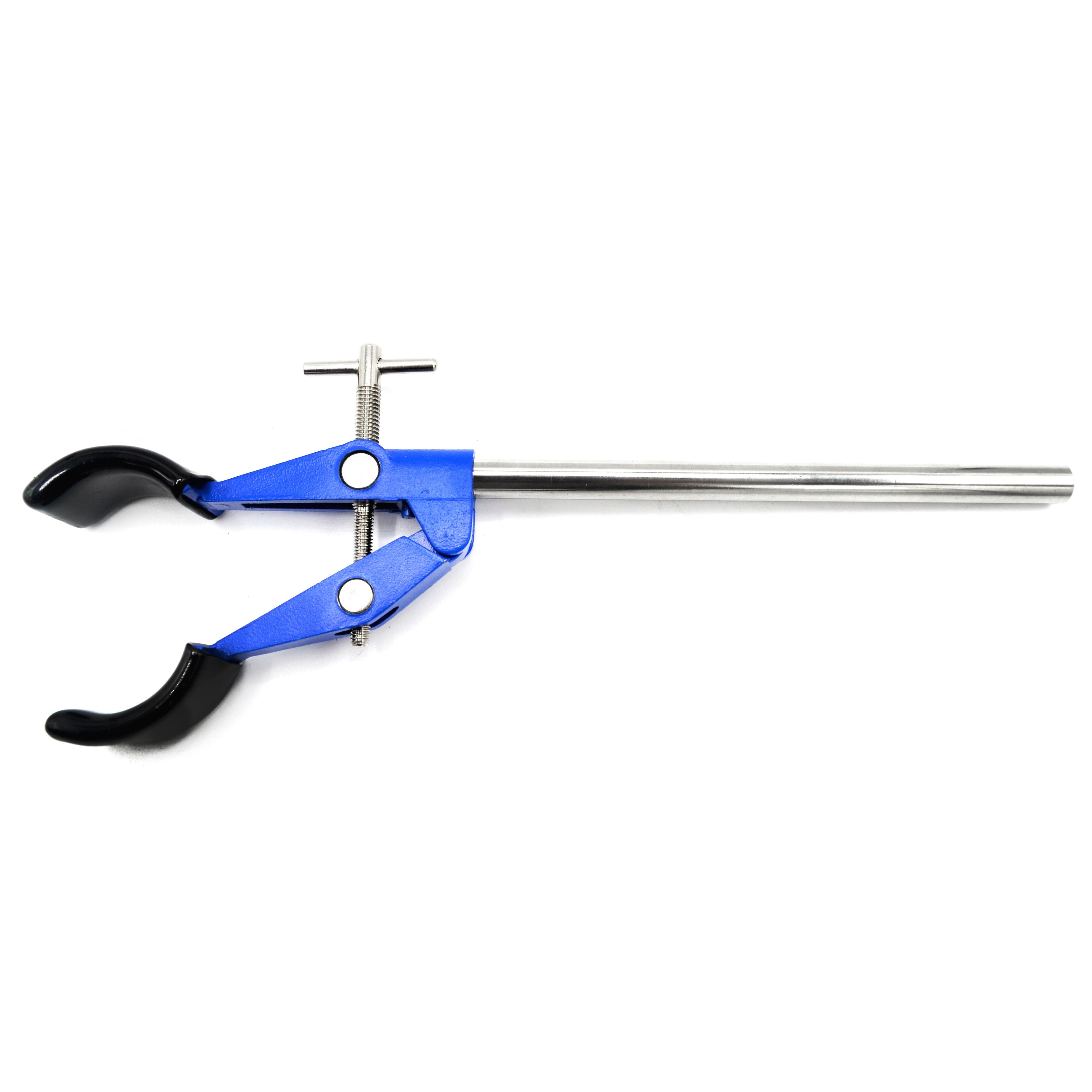

2 Prong, Vinyl Coated, Lab Clamp on Rod, 4.75" (12 cm) Maximum Clamp Opening
SKU PRCMP05
- Ideal uses for beakers, Erlenmeyer flasks, test-tubes, boiling (Florence) flasks, burets

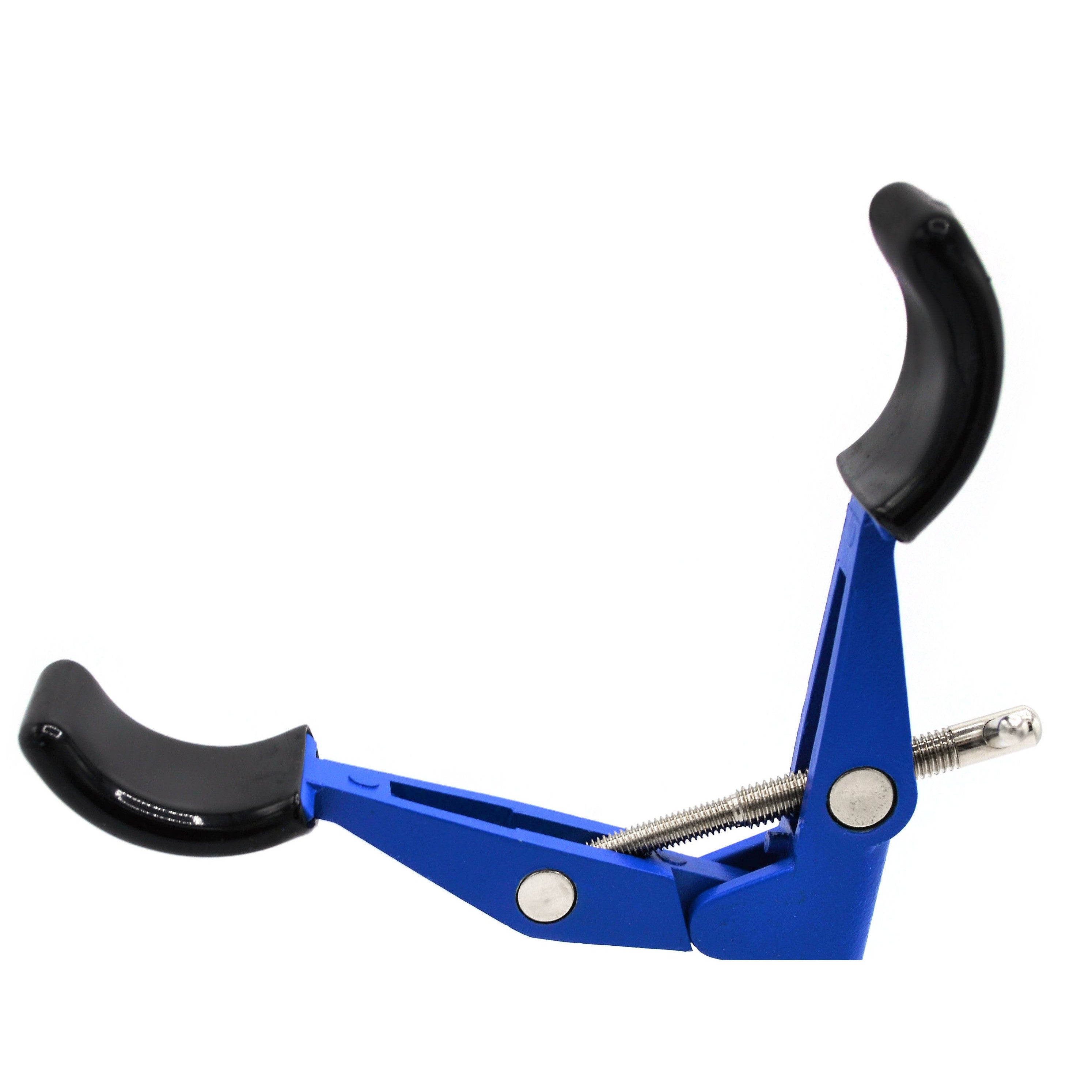

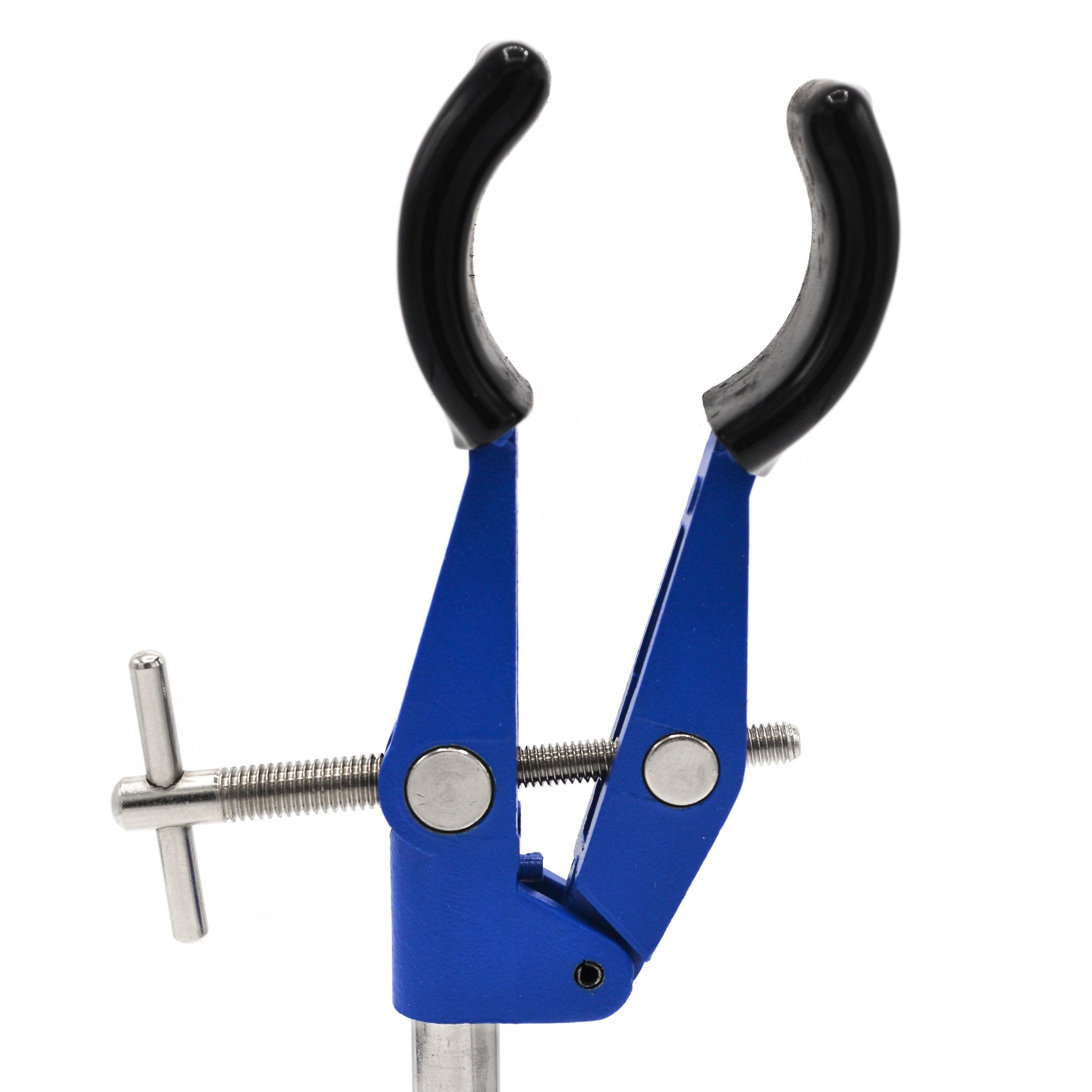

- The screw adjustment allows for precise pressure when gripping glass objects, to avoid potential breakage
- The round extension arm allows the clamp to be rotated 360 degrees as well as vary the distance from the support apparatus

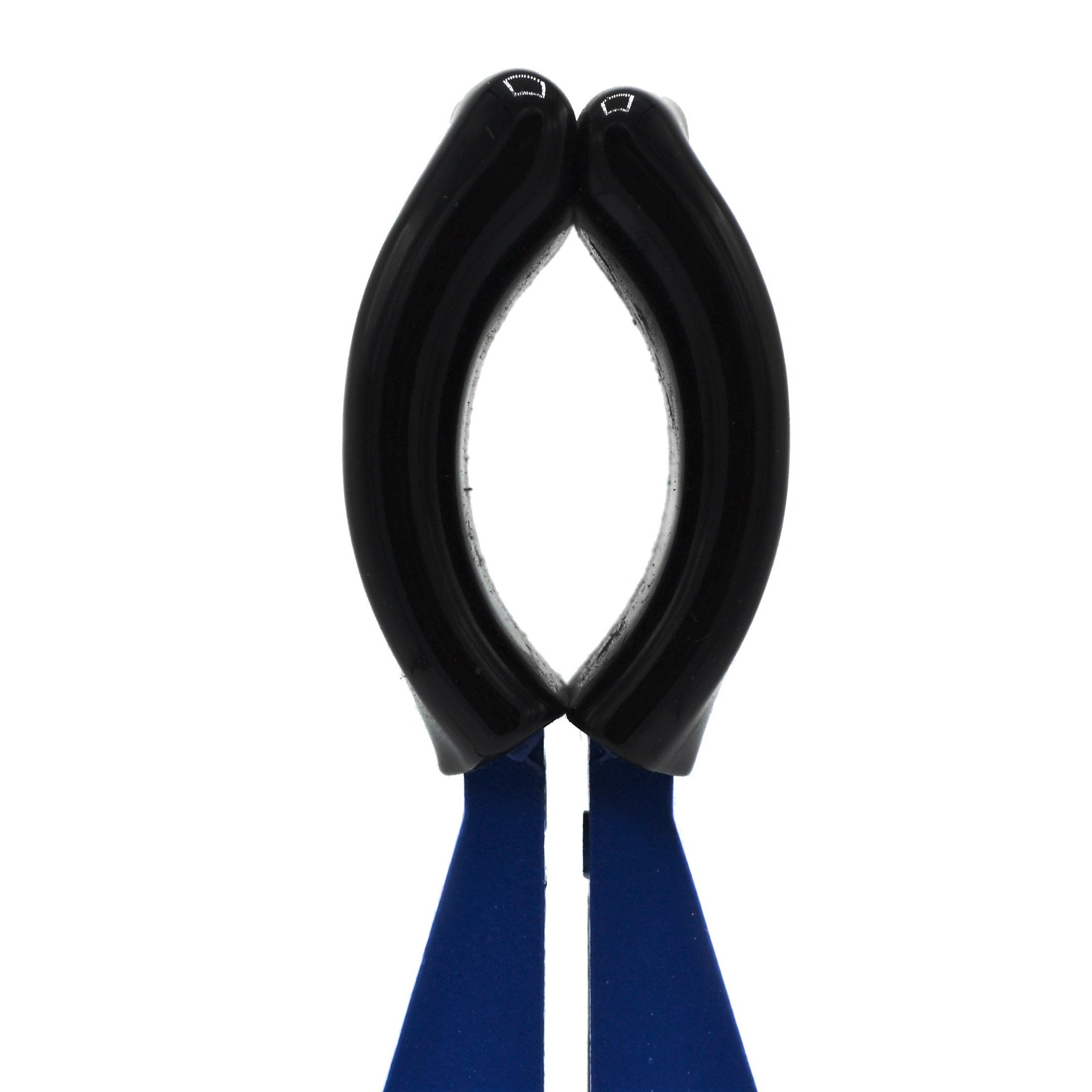

- The prongs are coated in vinyl for higher temperature applications
- Please see specifications tab for recommended boss head (sold separately) to secure the clamp to a frame or other apparatus

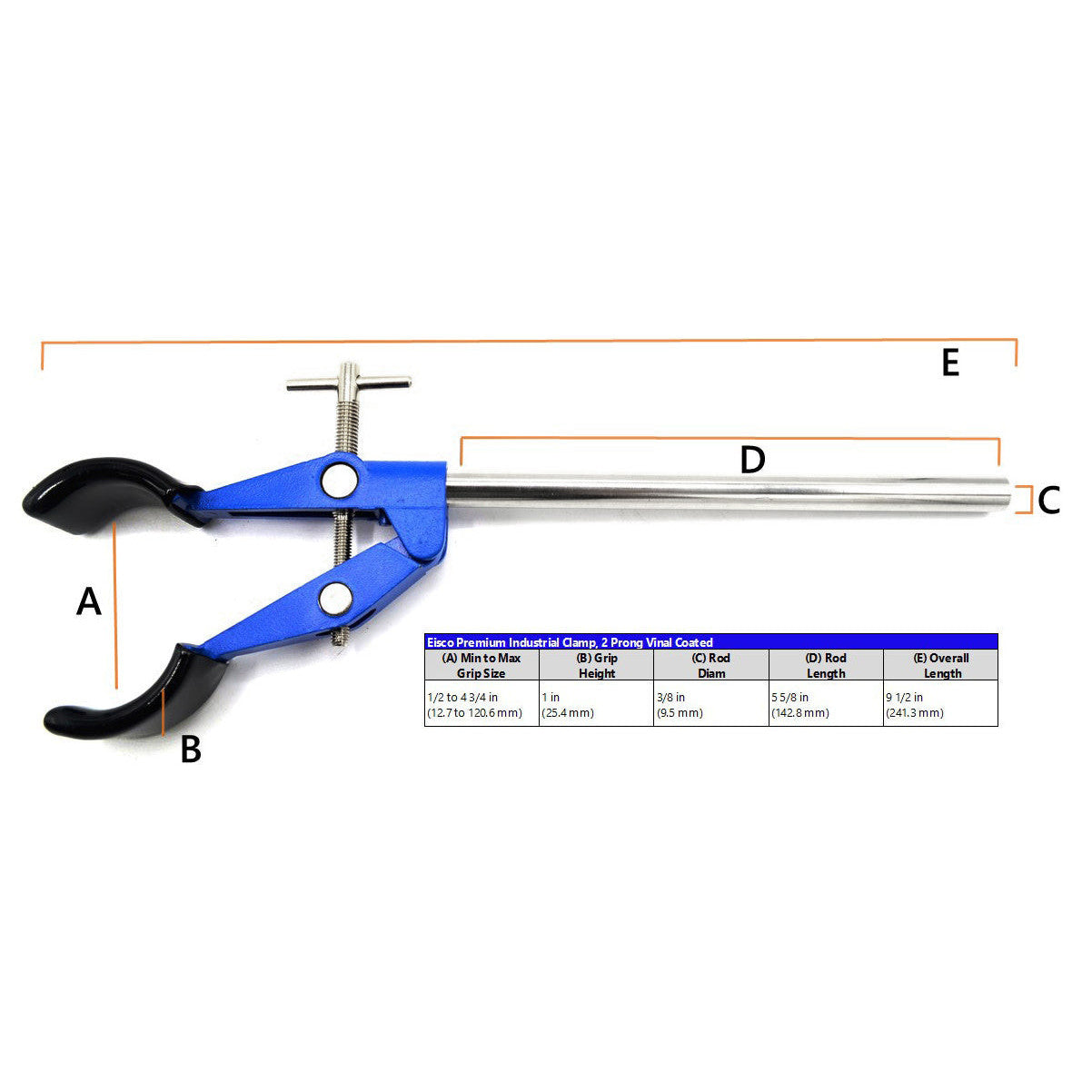

Specifications
| Adjustment Type | Single Adjustment |
| Clamp Size | Medium |
| Number of Fingers | 2 |
| Length of Clamp + Rod (in) |
9 1/2 |
| Length of Clamp + Rod (cm) |
24 |
| Rod Length (in) |
5 5/8 |
| Rod Length (cm) |
14 |
| Rod Diameter (in) |
3/8 |
| Grip Height (in) |
1 |
| Grip Height (cm) |
2.5 |
| Max Opening (in) |
4 3/4 |
| Max Opening (cm) |
12 |
| Min Opening (in) |
1/2 |
| Min Opening (cm) |
1.3 |
| Boss Head Max Opening |
N/A |
| Prong Coating |
Vinyl |
| Spring Loaded Jaws |
No |
| Adjustment Screw Composition |
Metal |
| Body Composition |
Made of zinc and powder coated alloy with metal adjustment screw |
| Extension Rod Composition |
Stainless Steel |
| Boss Head Included |
No |
| Recommended Boss Heads |
PRBH01 PRBH02 PRBH03 PRBH04 PRBH05 |
