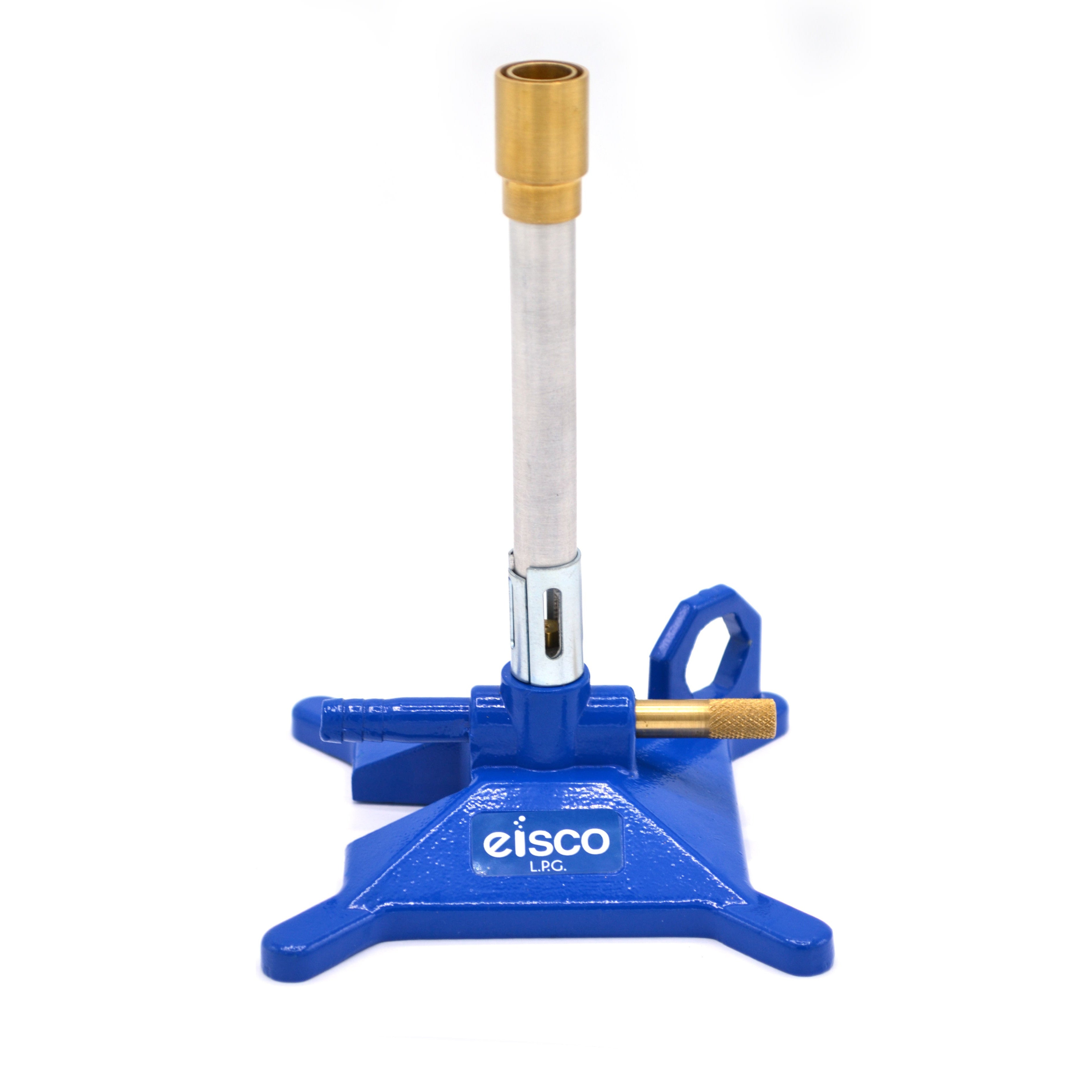

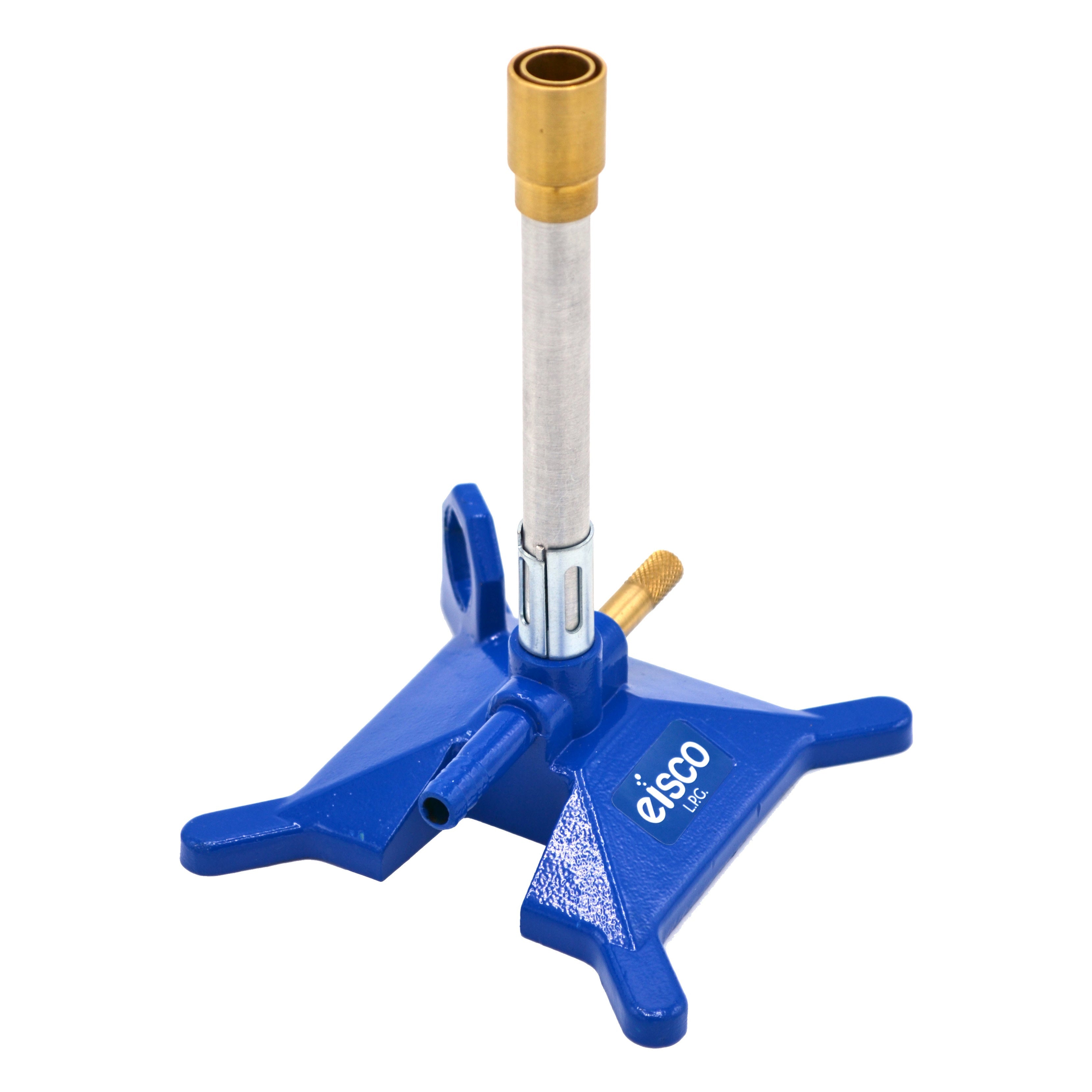

NextGen™ Bunsen Burner, Flame Stabilizer and Gas Adjustment
SKU CH0993LP
- Most popular, control gas and air flow to the flame
- Use for safe continuous stream of flammable gas used for heating, sterilization and combustion
- This burner is equipped with an air flow adjustment sleeve, brass thumb gas adjustment and brass flame stabilizer tip
- Expanded cast iron base prevents easy tipping, even with hoses connected
- Base is coated with a non toxic powder and is chemically resistant
- Spaced feet so burner fits comfortably under stands
- Easy carry handle allows you to move burner without touching any hot parts
- Tapered gas inlet ensures secure tubing connection
- For use with 6 - 8 mm tubing (Eisco CH0100A, CH0100B)
- Liquid propane gas and natural gas versions available

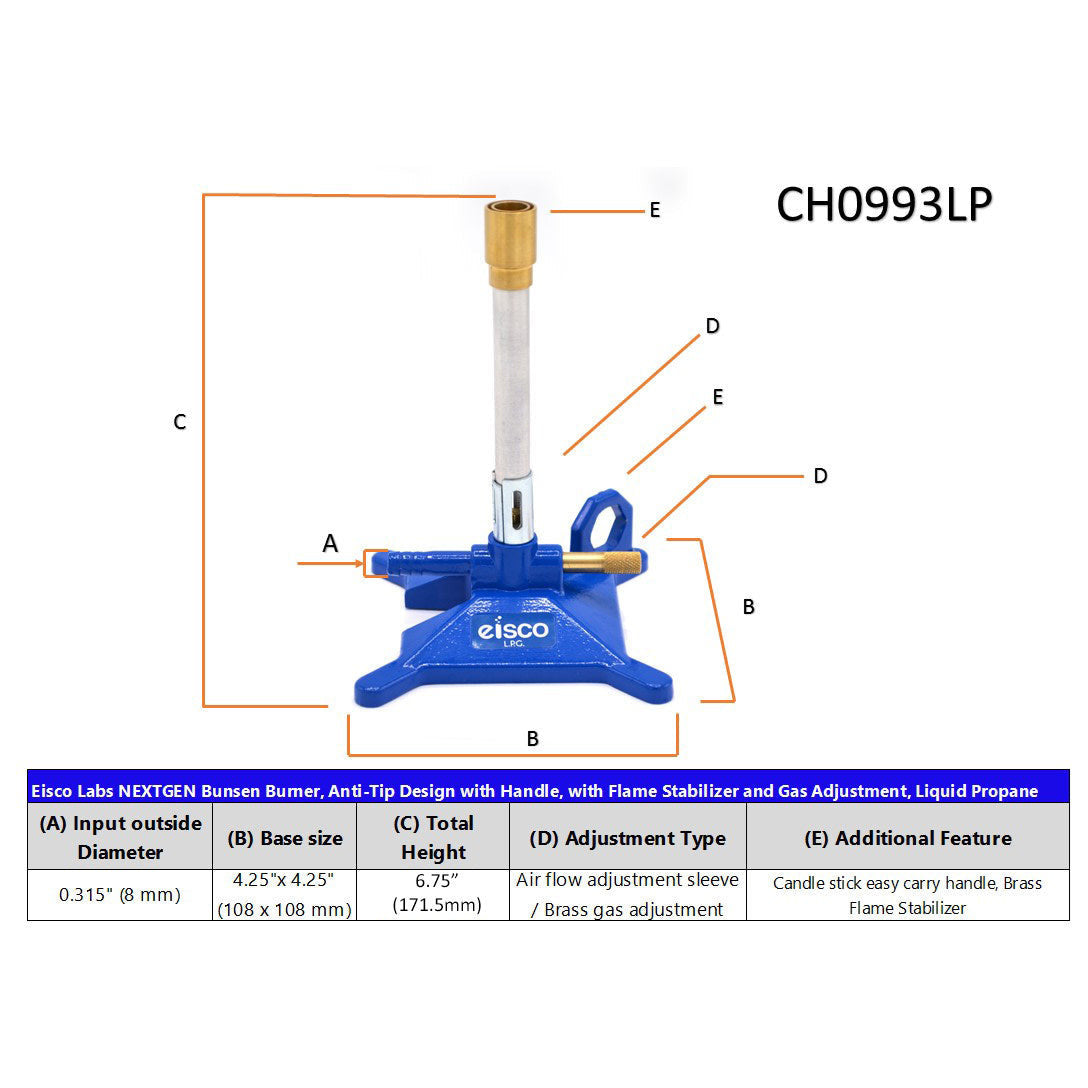

Specifications
Fuel Source | |
CH0993LP | Liquid Propane Gas |
CH0993NG | Natural Gas |
Adjustment Type | Air flow adjustment sleeve, brass gas flow adjuster, flame stabilizer |
Tube Diamater | 6 - 8 mm |
Base dimentions | 108 x 108 mm |
Height | 163.51 mm (6.4375") |
BTU Range | |
CH0993LP | 2000 - 3200 |
CH0993NG | 800 - 1200 |
Maximum Temperature | approx. 1500° C (2732° F) |
Recommended Tubing |
CH0100A CH0100B |
